CAM350 is a tool specifically optimized for PCB circuit design, offering an impressive level of comprehensiveness and functionality. It supports a variety of input/output formats, such as CAD data, ODB++, Gerber, IPC-356, Excellon, DXF, Sieb, and Myers, among others, enabling seamless integration into various PCB design and manufacturing processes and enhancing the portability and flexibility of design data.

The software features bidirectional support for AutoCAD and DXF data, allowing users to open and edit AutoCAD and DXF files directly in CAM350 without the need for format conversion, thus saving time and reducing the risk of errors.

CAM350 provides a comprehensive set of Design Rule Check (DRC) tools that can automatically verify PCB designs for spacing, annular rings, copper area, netlist comparison, and other aspects, ensuring compliance with manufacturing requirements and improving design reliability and production efficiency.

Optimization features include the ability to add teardrops (to enhance the strength of pad-to-trace connections), netlist extraction (for generating and verifying component connection relationships), and silk screen inspection (to ensure clarity and accuracy of silk screen printing), further enhancing the quality and manufacturability of PCB designs.

The software includes a powerful Basic NC Editor for PCB numerical control processing, supporting via editing, drill tool definition, milling path planning, and retract point adjustment, providing precise control and flexible editing capabilities.

With its rapid panelization feature, CAM350 enables users to easily create PCB panel layouts, thereby increasing production efficiency and material utilization.

Under the category of Software Features:

CAM350 emphasizes the manufacturability of PCB designs through its Design For Manufacturing (DFM) capabilities, offering DRC and optimization tools to consider manufacturing factors during the design phase, reducing the likelihood of late-stage modifications and rework.

As previously mentioned, CAM350's DRC feature is one of its core strengths, ensuring designs meet industry standards and manufacturing requirements, thereby enhancing reliability and compliance.

The software boasts broad data compatibility, facilitating easy integration with other design software and manufacturing equipment for seamless data flow and sharing.

DirectCAD technology allows CAM350 to process and edit CAD data directly, eliminating the need for cumbersome format conversions and improving work efficiency and accuracy.

Reverse engineering capabilities allow designers to extract design data from existing PCBs for analysis and improvement.

The software enables the conversion of drawing data to raster polygon format, facilitating subsequent manufacturing and processing.

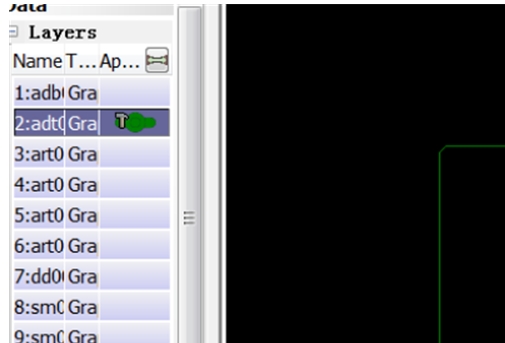

Multiple design layers can be combined into a composite layer, allowing designers to view and edit the entire design in a single view, improving work efficiency and design integrity.

Installation Steps:

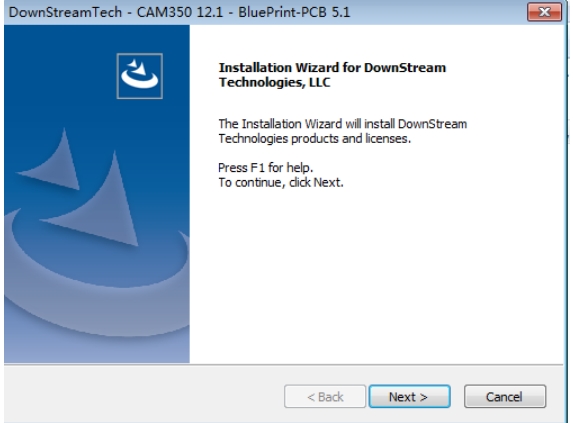

Download and double-click to extract the file, then open the installation page.

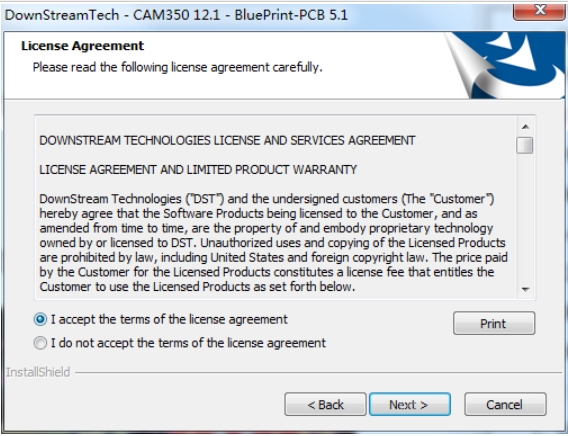

Double-click the exe file and follow the on-screen instructions to install.

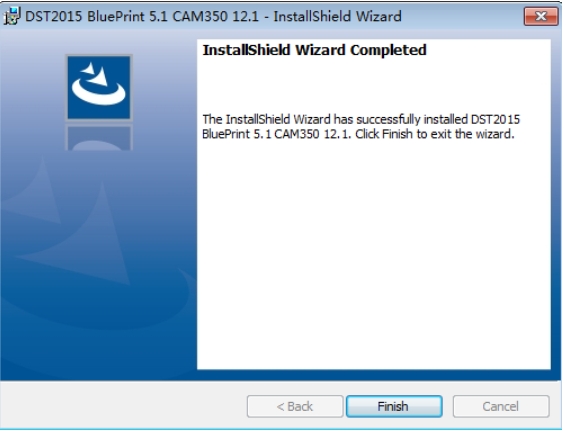

Wait patiently for the installation to complete, and then you can start using the software.
